NFC reader boards and modules – certified for fast integration

VTAP NFC reader boards and modules are fully certified for use with Apple Wallet and Google Wallet as well as having multiple radio certifications

The VTAP range of embedded NFC Wallet reader boards and modules offers quick and easy integration into any new or existing product, housing or environment. Several form-factors are available, including a surface-mount module supplied in tape and reel format for mass production. Alternative antennas and semi- or fully-custom NFC readers can also be quickly created from our established library of designs. As well as Apple VAS, Google Smart Tap and Apple ECP2/Access approvals, our standard reader boards and modules have modular FCC and ISED approvals, along with CE RED/UKCA test reports. This should simplify intentional radio emissions testing of your final product in many geographic markets and radically improve time to market.

VTAP key features and benefits

A teal coloured tick icon

Fully certified by Apple and Google for VAS, Smart Tap and ECP2 access control protocols

A teal coloured tick icon

USB or Power-over-Ethernet (PoE) powered readers with optional Wi-Fi and Bluetooth interfaces

A teal coloured tick icon

Configuration, keys and firmware updates either managed locally over USB, or by VTAP Cloud

A teal coloured tick icon

Secure on-board decryption of many different card, pass and credential types and storage of multiple ECC and AES keys

A teal coloured tick icon

Optional Bluetooth includes configurable beacon, BLE GATT and external barcode scanner support

A teal coloured tick icon

Can be desktop, panel or wall mounted for indoor use or can also be provided as embedded reader boards

Why use VTAP NFC embedded readers?

Powerful connectivity

All boards and modules support USB and RS-232 3V3 serial interfaces. SMT module adds SPI and I2C. The VTAP command protocol and secure OSDP protocol is available over any serial interface.

Universal card, tag and wallet support

Apple VAS, Apple ECP2/Access, Google Smart Tap, HCE, MIFARE, DESFire, MIFARE2Go and NFC Forum compatibility.

An icon showing a downward arrow in a circle

Choice of antennas

Our reader boards come with an integrated, tuned and certified NFC antenna while VTAP reader modules support external and custom antennas which we can help to design and/or tune to suit the environment.

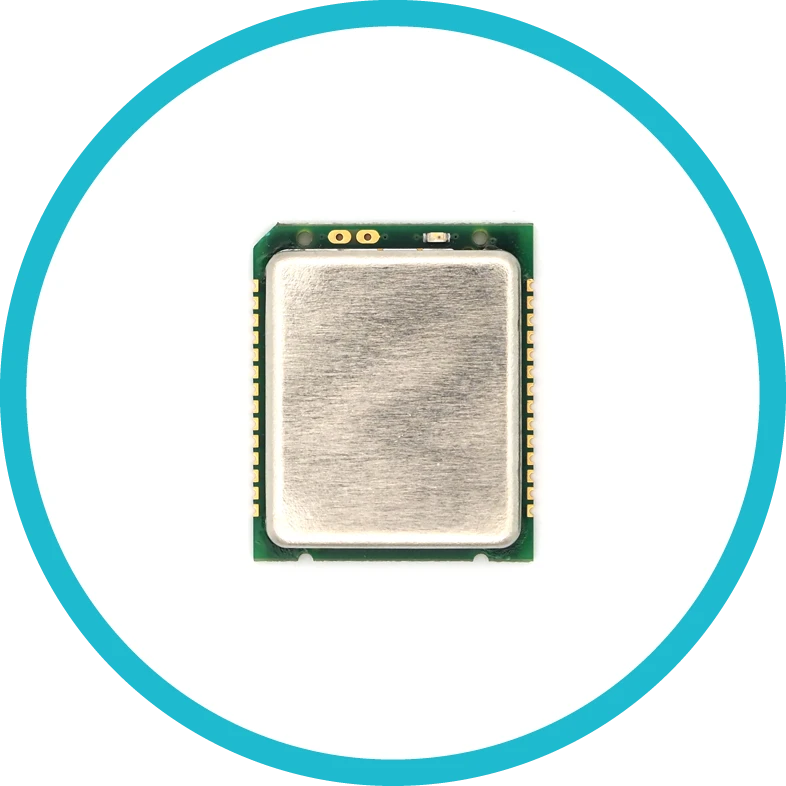

VTAP25 NFC reader module - USB and serial

Embedded surface mount reader for quick circuit board integration and easy certification.

Form factor

Tiny surface-mount NFC reader module. External antenna & serial RGB LEDs. 3.3-5V power input with low power modes.

Connectivity

USB (requires external filters). 3V serial UART, I2C and SPI.

Learn more >>

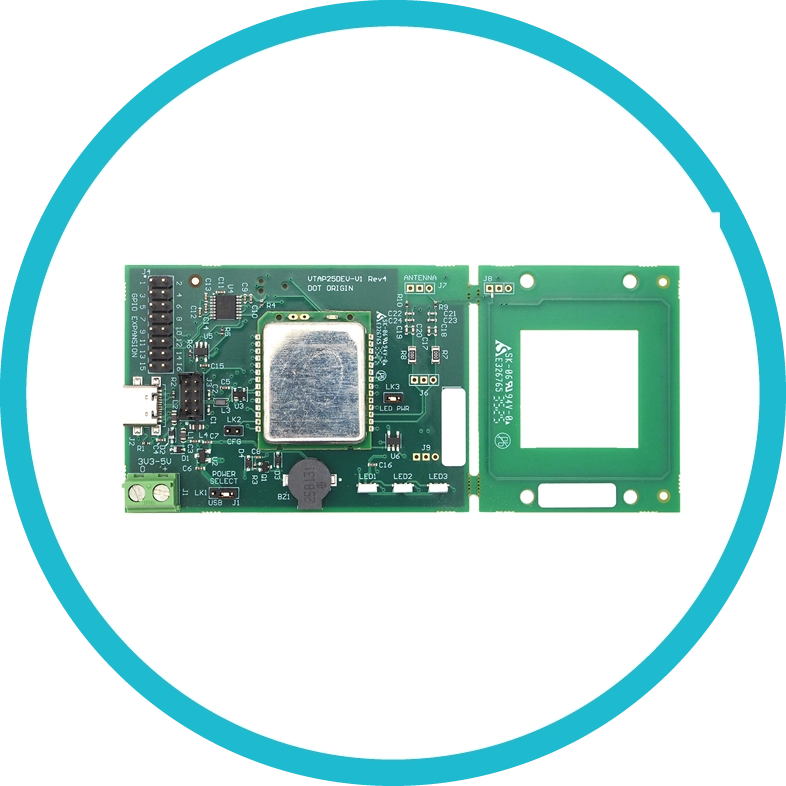

VTAP25 reader module development kit

Reference implementation of an industry-certified universal mobile wallet NFC reader using the VTAP25 surface mount module.

Form factor

NFC reader development board with on-board interfaces, components, antenna and connectors. Built-in reference antenna and facilities to attach and tune an external antenna.

Connectivity

Power via on-board USB-C, 8-pin captive cable or screw terminal block (3.3V or 5V). Supports multiple USB, serial and inter-processor comms protocols including secure OSDP.

Learn more >>

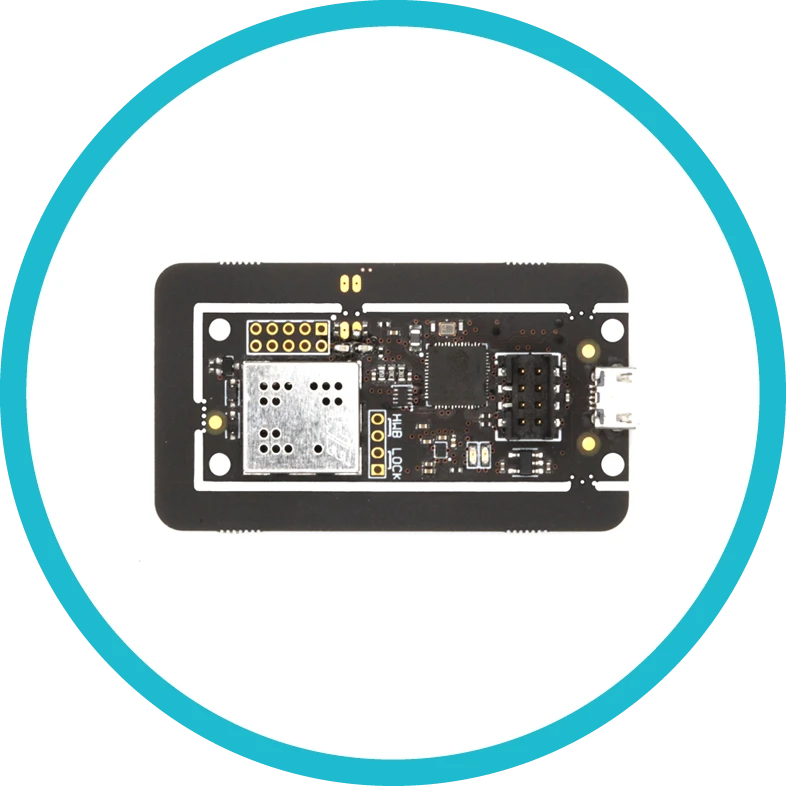

VTAP50 certified NFC reader board - USB and serial

Super-compact NFC reader board for quick integration and easy certification for any NFC Wallet application.

Form factor

Integrated antenna (removable). External tuned antenna option. External serial RGB LED options. Optional conformal coating.

Connectivity

Micro-USB socket. USB and RS-232 via 8-pin header connector. USB and 3.3V serial via FFC connector

Learn more >>

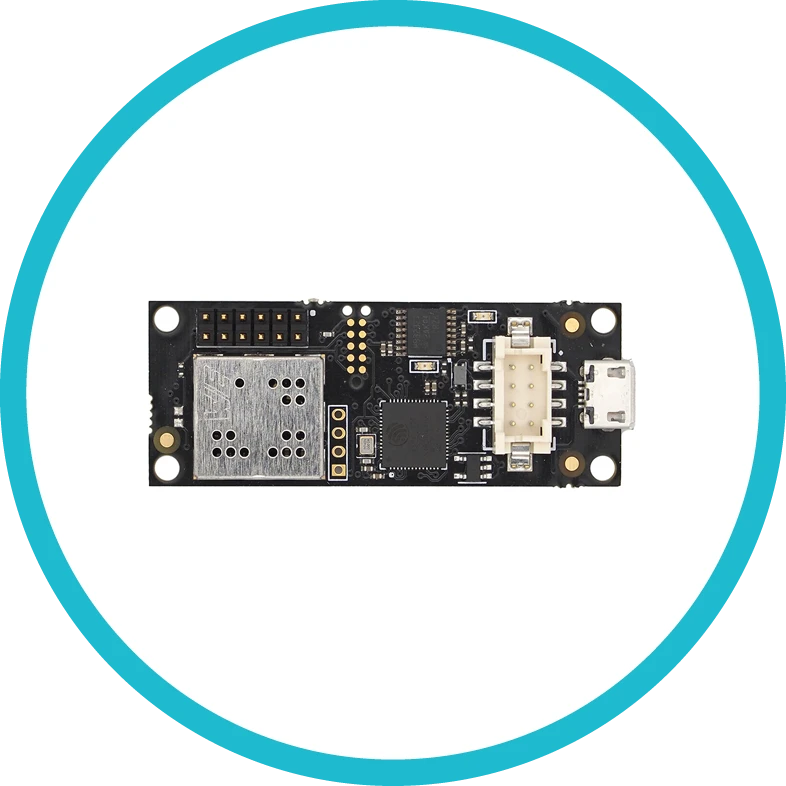

VTAP50 NFC reader module - USB and serial

Embedded reader module for quick integration and easy certification with separate or custom antenna.

Form factor

Requires external antenna and tuning board. 5V supply over USB cable. External serial RGB LED options. Optional conformal coating.

Connectivity

Embedded reader module. Micro-USB socket. USB and RS-232 via 8-pin header connector. USB and 3.3V serial via FFC connector

Learn more >>

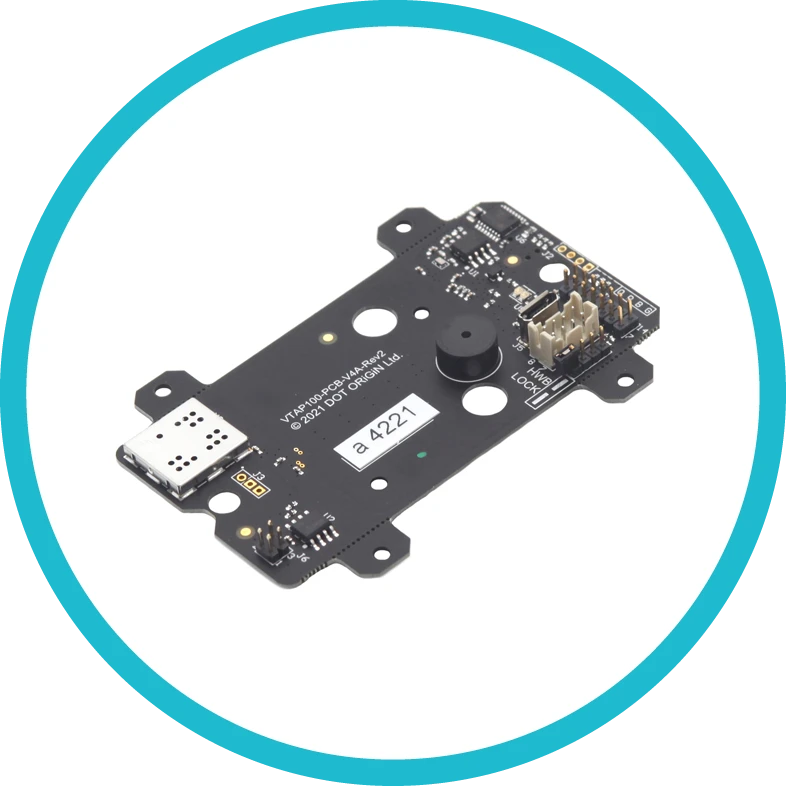

VTAP100 certified NFC reader board - USB and serial

Embedded reader board for quick integration and easy certification for any NFC Wallet appliction.

Form factor

Compact NFC reader board with removable mounts. Integrated antenna (with FCC modular approval). Optional conformal coating.

Connectivity

Micro-USB socket. USB and RS-232 also available via 8-pin header connector.

Learn more >>

VTAP100 PRO - Wi-Fi and Bluetooth - certified reader board

IP-connected NFC Wallet reader board with Wi-Fi and Bluetooth connectivity for check-in, ticketing, loyalty and access control applications.

Form factor

Compact NFC reader board assembly. Integrated antenna (with FCC modular approval). Optional I/O expansion board to control relays and LEDs.

Connectivity

Wi-Fi (2.4GHz, WPA to network/internet). Micro-USB socket for 5V power and optional data output. BLE keyboard emulation, BLE GATT, iBeacon and external barcode scanner support.

Learn more >>

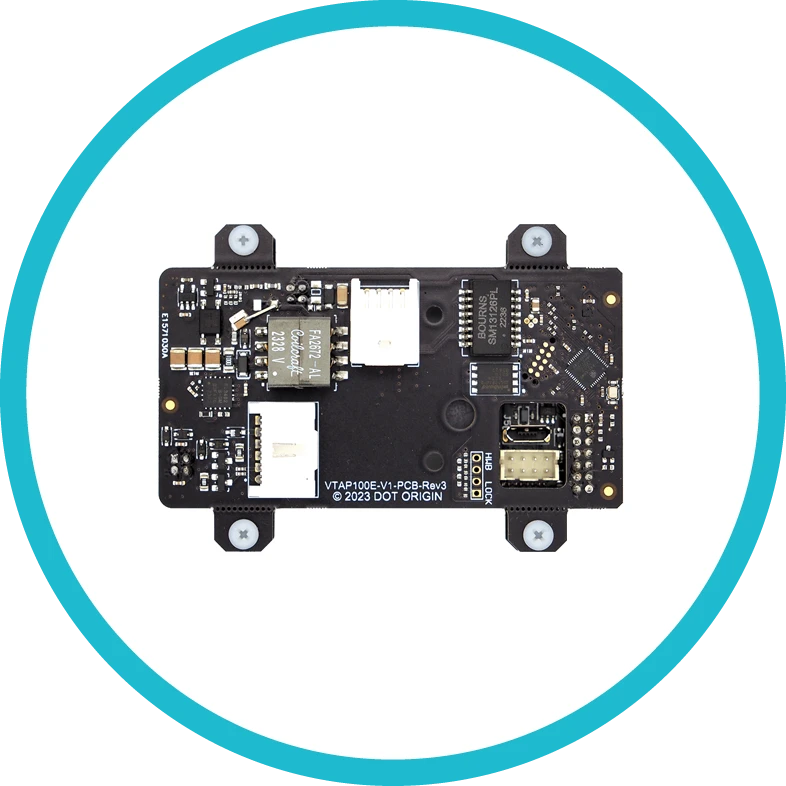

VTAP100 PRO - PoE - certified reader board

IP-connected NFC Wallet reader board with power over ethernet connectivity for check-in, ticketing, loyalty and access control applications.

Form factor

Compact NFC reader board assembly. Integrated antenna (with FCC modular approval). Optional conformal coating. Optional I/O expansion board to control relays and LEDs.

Connectivity

Powerful server-based tap handling and optional VTAP Cloud management (subscription required).

Learn more >>

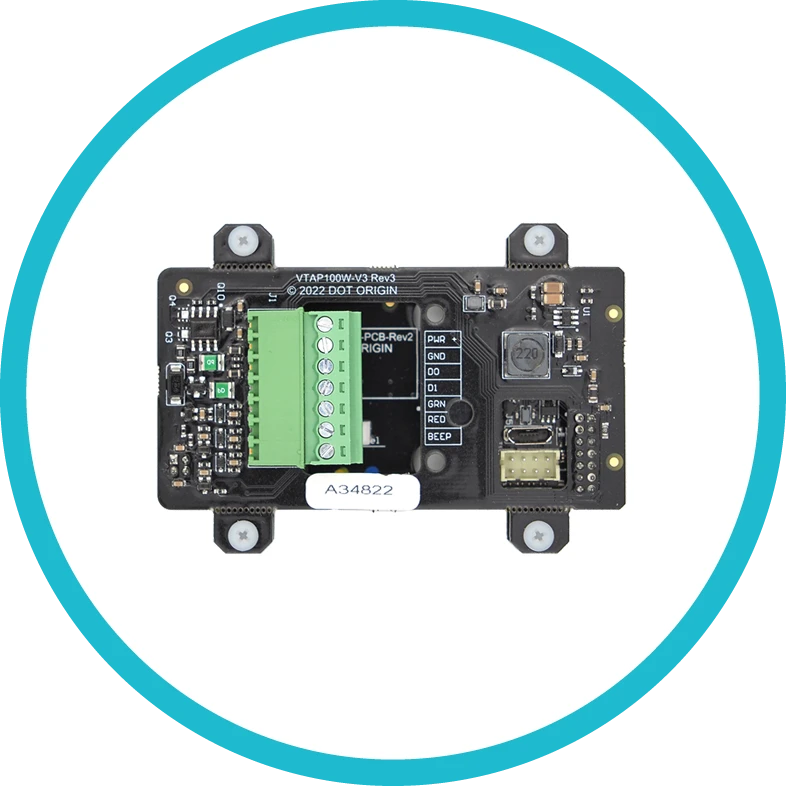

VTAP100 PAC Wiegand - certified reader board

Embedded Wiegand access control reader board for connection to any legacy door controllers gates and turnstiles.

Form factor

Compact NFC reader board assembly. Integrated antenna (with FCC modular approval). Conformally coated boards.

Connectivity

Removable Wiegand connector for 8-16V power supply, Wiegand data, buzzer and LED. Micro-USB socket for configuration / progamming.

Learn more >>

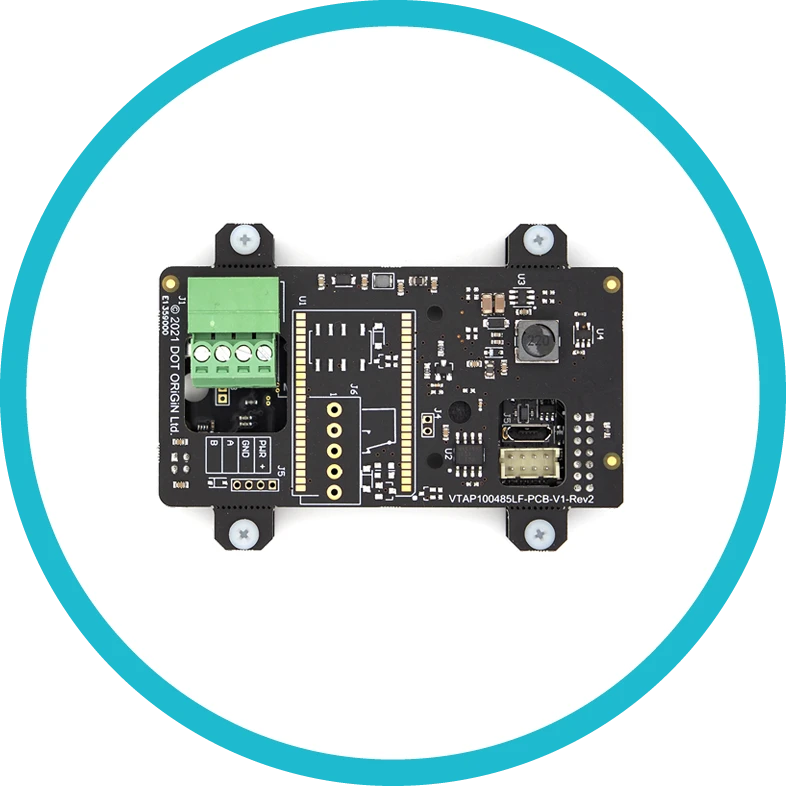

VTAP100 PAC RS-485/OSDP - certified reader board

Embedded RS-485/OSDP access control reader board with designed for ticketing and access control applications at doors, gates and turnstiles.

Form factor

Compact NFC reader board assembly. Integrated antenna (with FCC modular approval). Conformally coated boards.

Connectivity

Removable RS-485 connector for 8-16V power supply and serial data. Micro-USB socket for configuration/programming.
